Help with drainage design using Mini Slot SLIM system

Hello Vodaland community,

I would like some help figuring out a drainage design using the Mini Slot SLIM channel system. As shown in the drawings below, we are trying to create a slot drain for a patio up against the wall of a house. Because of this location, we cannot put the catch basins in line with the slot. For aesthetic reasons, we are also trying to avoid putting the drain in between two paving joints, and do not want a visible channel running through a paver. I would like to get some input on some ideas shown below

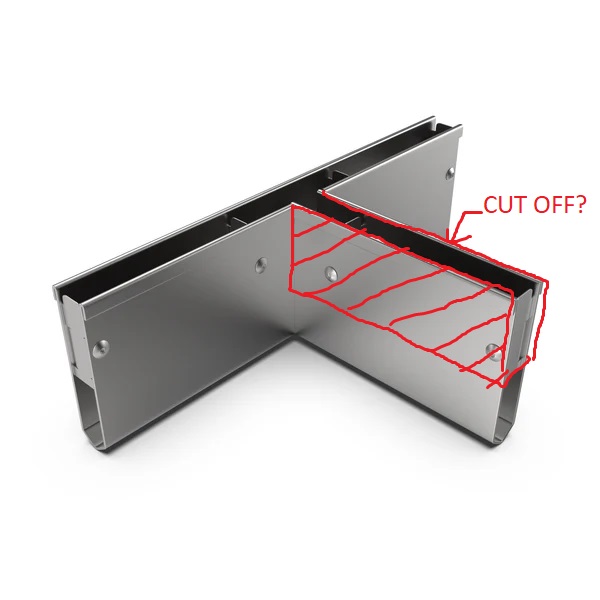

1. Could we cut the SLIM T-Adapter as shown to hide the portion connecting the slot to the catch basin underneath our paving?

2. Could we attach the catch basin to the wall of the slot as shown in the second plan, perhaps by again removing a portion of the T-Adapter?

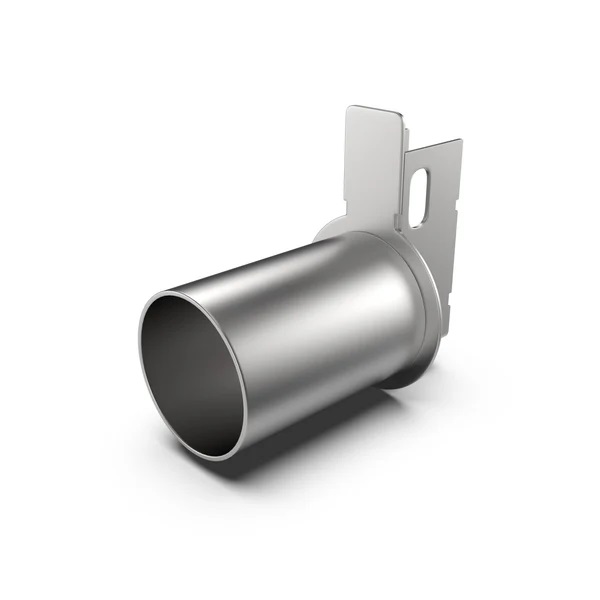

3. Could we attach this end cap directly to the side wall of the slot with no channel branching off into the paving?

Any help is appreciated and I am happy to talk with a representative!

Wyatt Collins

Landscape Designer - Dan Gordon Landscape Architects

508-944-8252
